Example annotations for person

If the image or the names of keypoints does not display, your browser may not support this interface. Try the latest Chrome, Safari or Firefox browsers.

Task Guidelines

Interface Instructions:
  1. Mark all the visible keypoints of the person within the bounding box by dragging each of the keypoints to its correct location. See this page to see what we mean by visible.
  2. Note that left and right are from the point of view of the object. See examples.
  3. Press the Submit Results button at the bottom once done.
  4. If you cannot localize a keypoint, leave it at its intial location. If you accidentally moved it, put it back in the black area. We will evalutate all the keypoints placed on the image.
  5. Press r or R if you need to reset the annotation.

Mark the locations of the following keypoints :

  1. L_Shoulder : left shoulder
  2. L_Elbow : left elbow
  3. L_Wrist : left wrist
  4. R_Shoulder : right shoulder
  5. R_Elbow : right elbow
  6. R_Wrist : right wrist
  7. L_Hip : left hip
  8. L_Knee : left knee
  9. L_Ankle : left ankle
  10. R_Hip : right hip
  11. R_Knee : right knee
  12. R_Ankle : right ankle
  13. L_Eye : left eye
  14. R_Eye : right eye
  15. L_Ear : left ear (see examples)
  16. R_Ear : right ear (see examples)
  17. Nose : tip of the nose
  18. L_Foot : left foot (see examples)
  19. R_Foot : right foot (see examples)
  20. HeadBack : back of the head (see examples)

You need to mark only the visible keypoints, by dragging and dropping the keypoints to their location in the image. The remaining keypoints must be left untouched.

Try to mark the shoulders and hip keypoints regardless of their visibility unless they fall outside the image

Shoulders, Elbows, Wrists, Hips, Knees, Ankles: Approximate limbs as cylinders. The joint location in 3D is the intersection of the axes of adjoining cylinders.

Nose Tip: The location is the tip of the nose, regardless of frontal or profile view.nose_frontal nose_profile

Eyes: In frontal view it is the midpoint of the two eye corners. The eye location does not depend on the pupils. frontal_eyes In profile view it is the tip of the eye surface.profile_eye Even if the eye is closed, we estimate the tip of the eye surface, ignoring the eyelids.

Ears: The tip of the tragus (the small pointed eminence of the external ear). frontal_ear. profile_ear

Shoulders, Elbows, Wrists, Hips, Knees, Feet: The clothes corresponding to the area of the joint do not hide the joint.visible_joint The joint may, however, be hidden by the torso or limbs of the same person. For example, in right profile view, the left joints of the body are often occluded by the torso and/or by the right limbs.

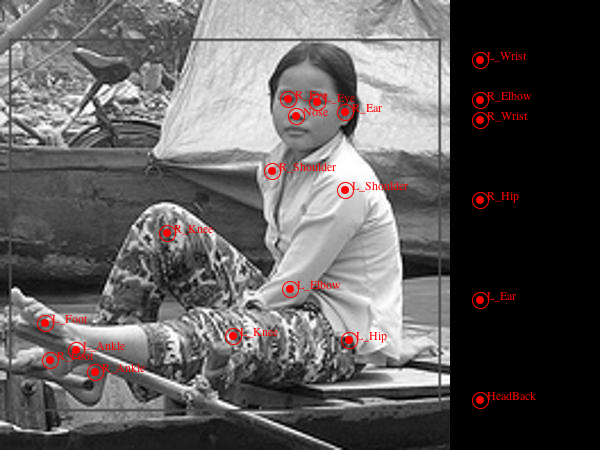

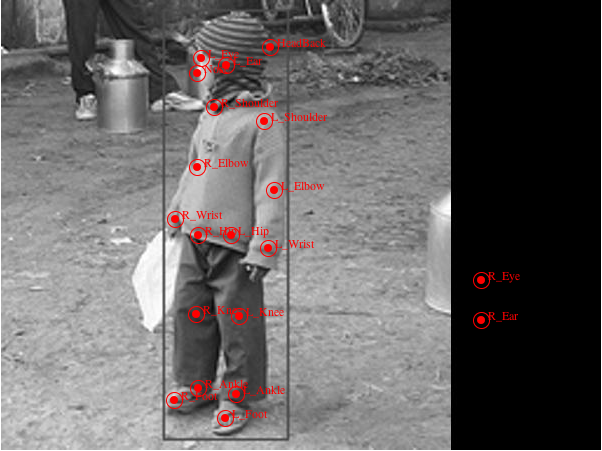

Example Annotations
